  • Home
  • /
  • Neon 3000K
  • /
  • Mini Neoflex Top Bend
Open media 0 in modal
Mini Neoflex Top Bend
Open media 1 in modal
Mini Neoflex Top Bend
Open media 2 in modal
Mini Neoflex Top Bend
Open media 3 in modal
Mini Neoflex Top Bend
Open media 4 in modal
Mini Neoflex Top Bend
Mini Neoflex Top Bend
Mini Neoflex Top Bend
Mini Neoflex Top Bend
Mini Neoflex Top Bend
Mini Neoflex Top Bend
Open media 0 in modal
Mini Neoflex Top Bend
Open media 1 in modal
Mini Neoflex Top Bend
Open media 2 in modal
Mini Neoflex Top Bend
Open media 3 in modal
Mini Neoflex Top Bend
Open media 4 in modal
Mini Neoflex Top Bend

Mini Neoflex Top Bend

Regular price $27.00
#MINI.NEOFLEX.30.TB.PM

Description

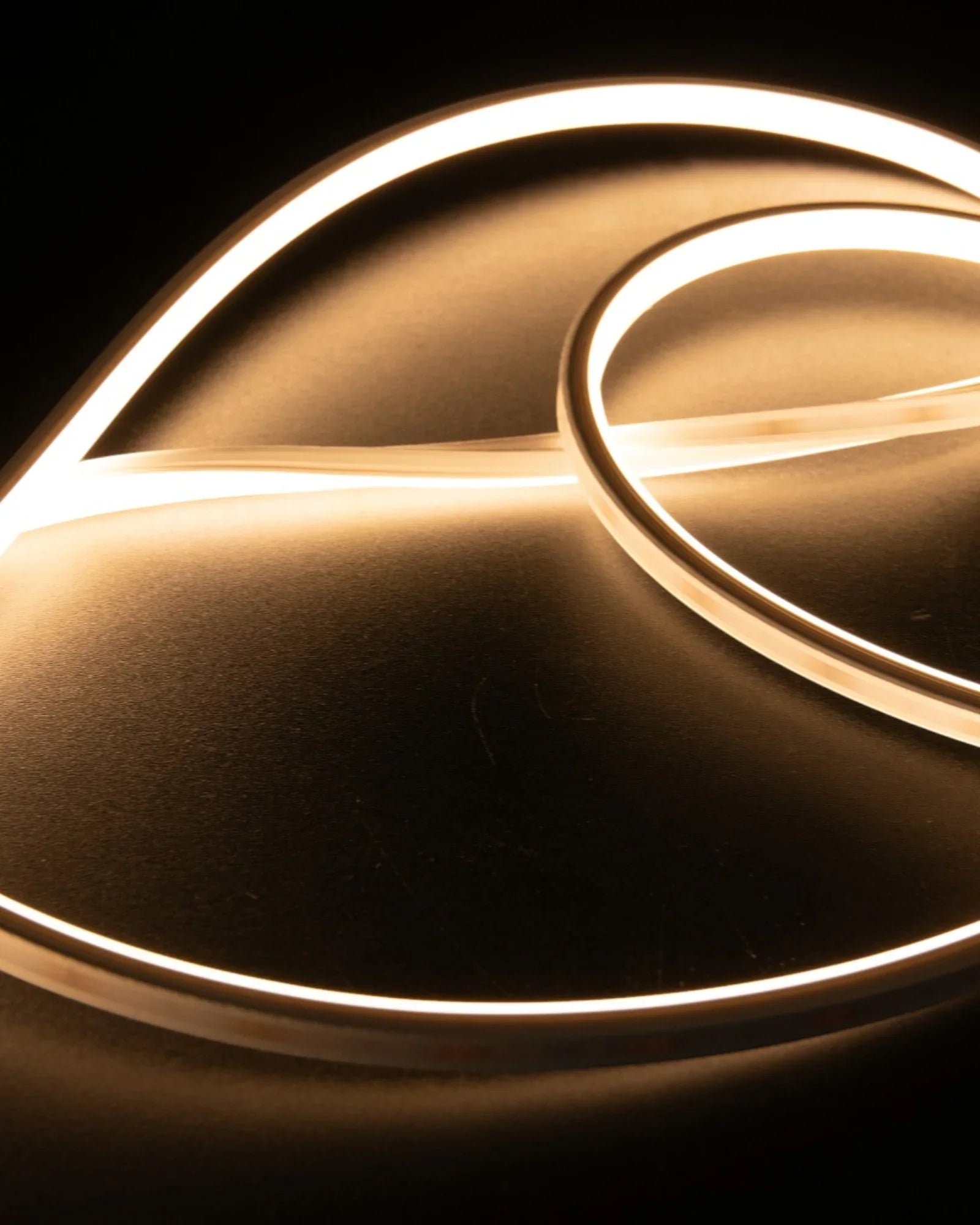

NEO FLEX MINI Top Bend is the ultra-compact silicone neon flex LED strip, crafted for precise, top-down flexibility in the most discreet highlight and accent applications. Measuring just 6 mm wide × 6 mm high with an efficient 6 W/m output, NEO FLEX MINI Top Bend delivers a clean, dot-free neon-style glow in an exceptionally small square profile, ideal for creating subtle, elegant linear accents where minimal visual footprint and vertical bending are essential.

Designed exclusively for top-bend (vertical) flexibility, this mini series excels at smooth upward/downward curves, arches, waves, and tight vertical radius, perfect for outlining edges, tracing contours in one plane, or fitting into slim recesses and joinery without side-to-side distortion. Fully encapsulated in soft, durable, UV-resistant silicone for reliable indoor use (IP65 equivalent), it remains highly flexible, cuttable to length, and easy to install in refined, space-constrained designs.

Key Features

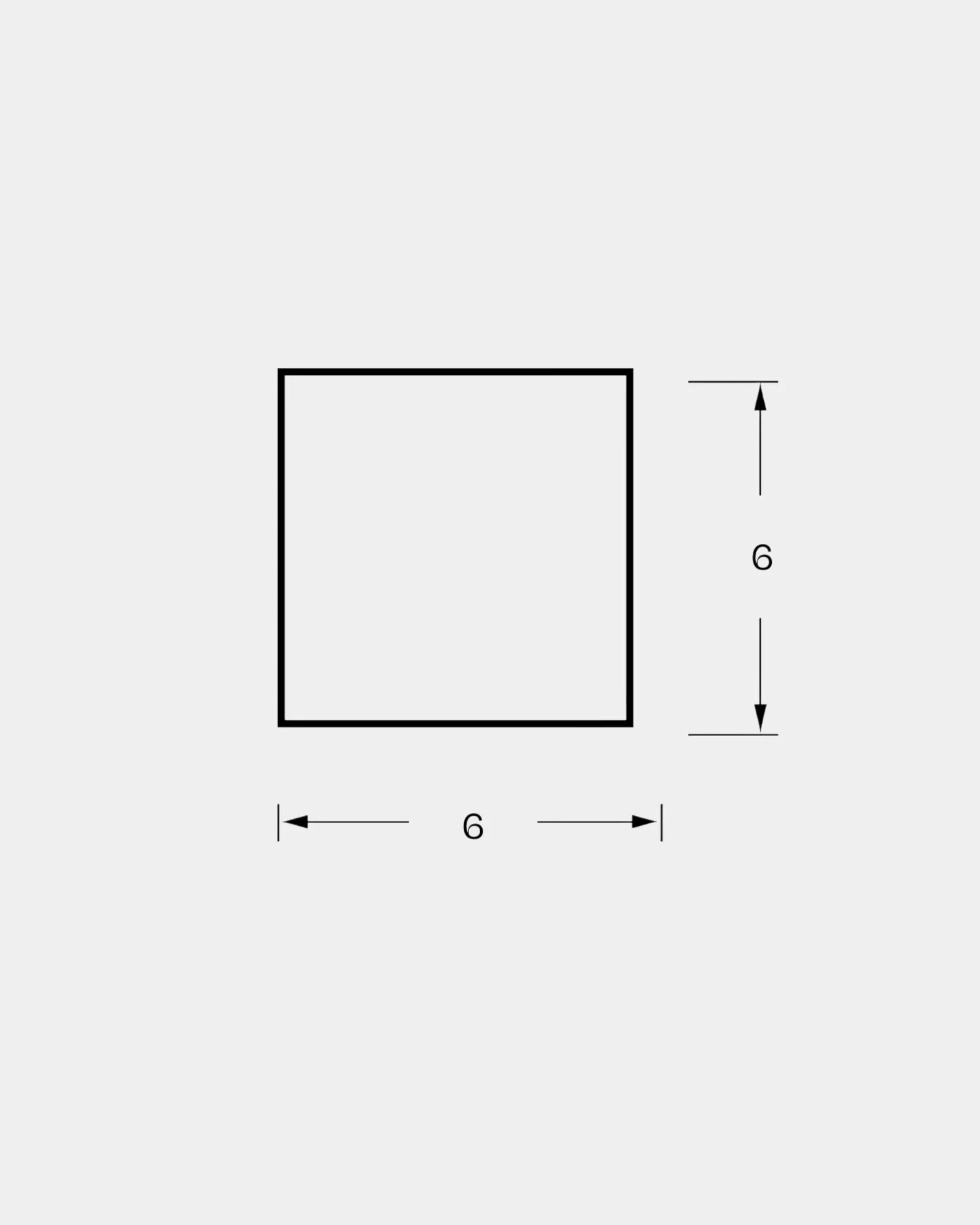

Ultra-Compact 6 × 6 mm Square Profile: The smallest square-format neon flex for near-invisible integration.

Top-Bend Only Technology: Superior vertical flexibility for arches, waves, and tight up/down curves in a single plane.

Efficient 6 W/m Output: Perfect balance of brightness for delicate highlights or layered effects with low heat and power use.

Dot-Free, Uniform Neon Glow: Smooth, consistent illumination with excellent colour quality and no visible LEDs.

Premium Silicone Encapsulation: Soft, pliable, and cuttable for custom lengths and seamless detailing.

Slim & Lightweight Design: Effortlessly conceals in narrow gaps, coves, or behind fine edges.

Accessory Support: Compatible with dedicated mini mounting clips and flexible channels (check our range for best compatibility).

Ideal Applications

Slim joinery, cabinetry, and plinth edge lighting

Shelf and display contour outlining

Furniture detailing and under-cabinet accents

Architectural trim, skirting, and cove highlights

Signage lettering, logo accents, and micro-features

Retail fixture edging and hospitality subtle accents

Any refined project needing tiny, vertically curved neon glow in tight or minimalist spaces

Why Choose NEO FLEX MINI Top Bend? NEO FLEX MINI Top Bend is the ideal choice when vertical curvature and extreme compactness are priorities. Its 6 × 6 mm square section slips into the narrowest profiles, while the dedicated top-bend capability enables graceful arches and waves that flat or side-bend strips simply can’t replicate in such small dimensions. At 6 W/m, it provides refined, controlled light, bright enough to define edges beautifully, subtle enough to enhance rather than dominate.

Whether accentuating the curve of a custom handrail, tracing a delicate ceiling detail, or adding a whisper of neon to fine millwork, NEO FLEX MINI Top Bend brings professional neon aesthetics to the tiniest, most precise applications.

The result? A miniature, top-bend neon flex strip that delivers elegant, seamless vertical highlights in the smallest spaces, offering discreet luminosity, precise curve control, and flawless integration for luxury residential, commercial, and bespoke design projects.

Colour Temperature 3000K
Length Cut to Length (Priced Per Meter - Add QTY below)
Only 0 left in stock. Order soon.


You may also like
Datasheet

Download Datasheet

Product Images

Download Images

Specifications

Size

6x6mm

Wattage

6W

Voltage

DC24V

CRI

90+

Colour Temperature

3000K

Beam Angle

180°

IP Rating

IP67

Lumens

253lm @ 3000K

Efficacy

42.2lm/W

Cutting Increments

25mm

LED Life

50,000 Hours

Warranty

5 Year

Size

6x6mm

Wattage

6W

Voltage

DC24V

CRI

90+

Colour Temperature

3000K

Beam Angle

180°

IP Rating

IP67

Lumens

253lm @ 3000K

Efficacy

42.2lm/W

Cutting Increments

25mm

LED Life

50,000 Hours

Warranty

5 Year

Accessories

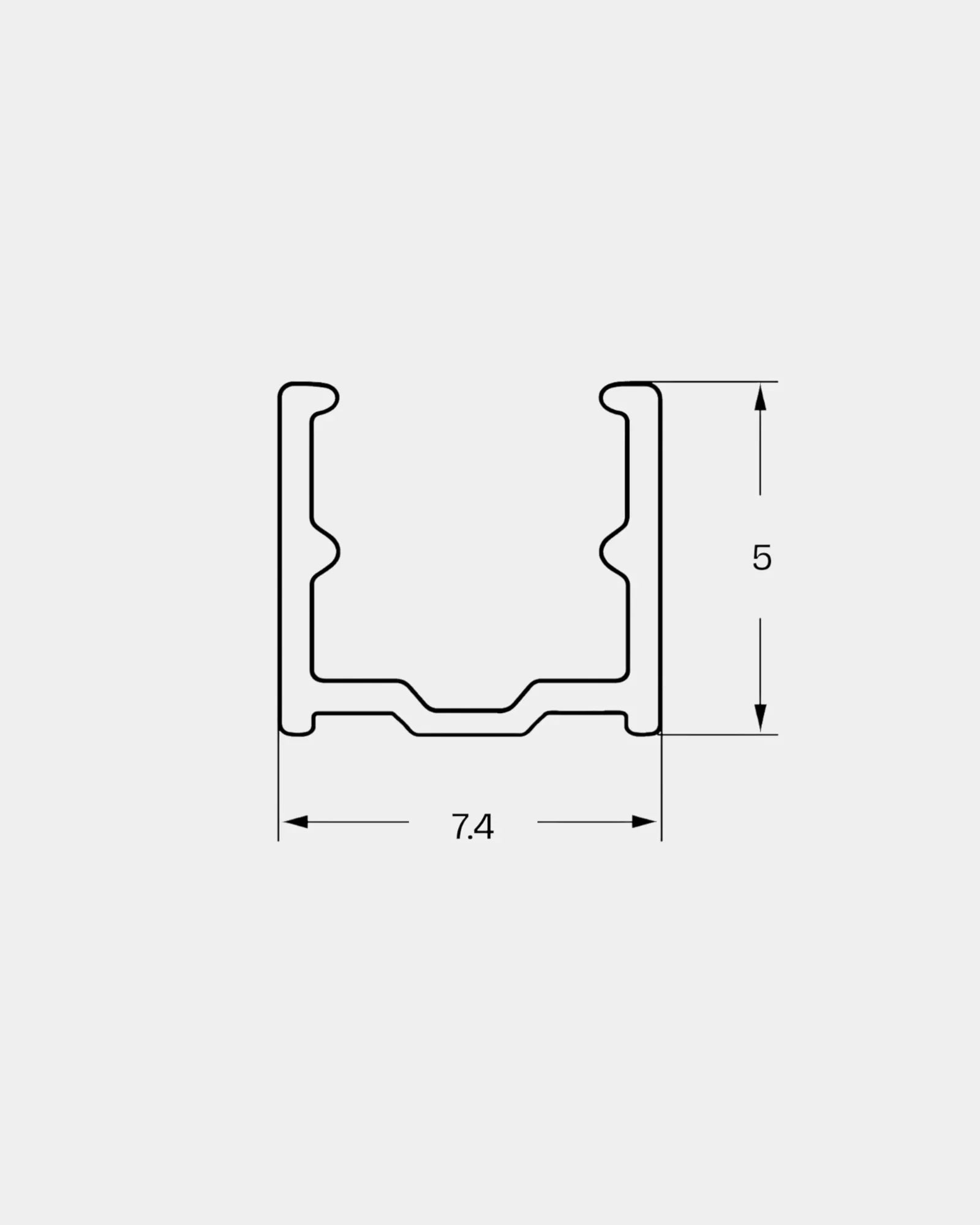

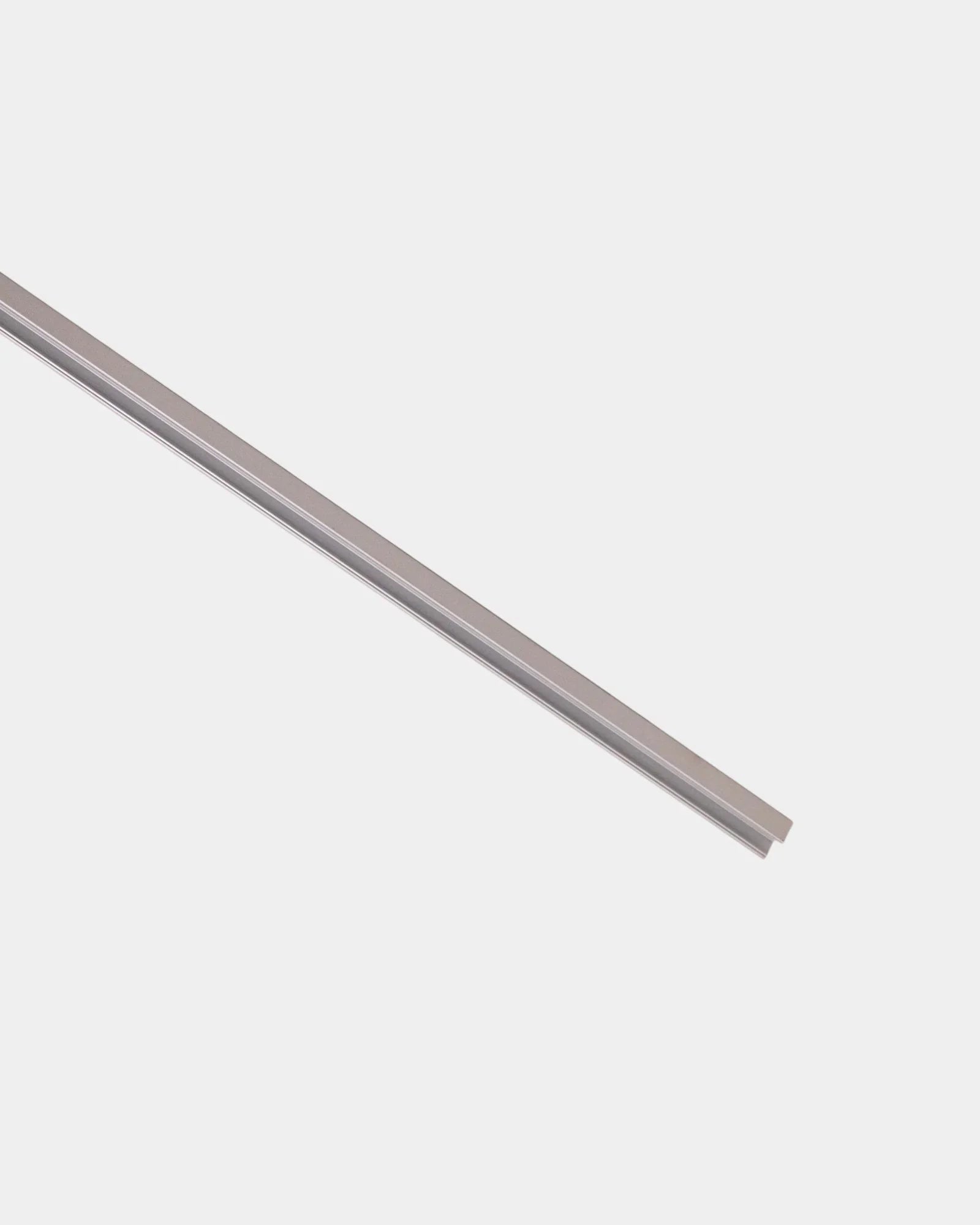

Mini Neoflex Top Bend Aluminium Profile 2000mmm Mini Neoflex Top Bend Aluminium Profile 2000mmm

Mini Neoflex Top Bend Aluminium Profile 2000mmm

Regular price $9.00
Available in 1 title

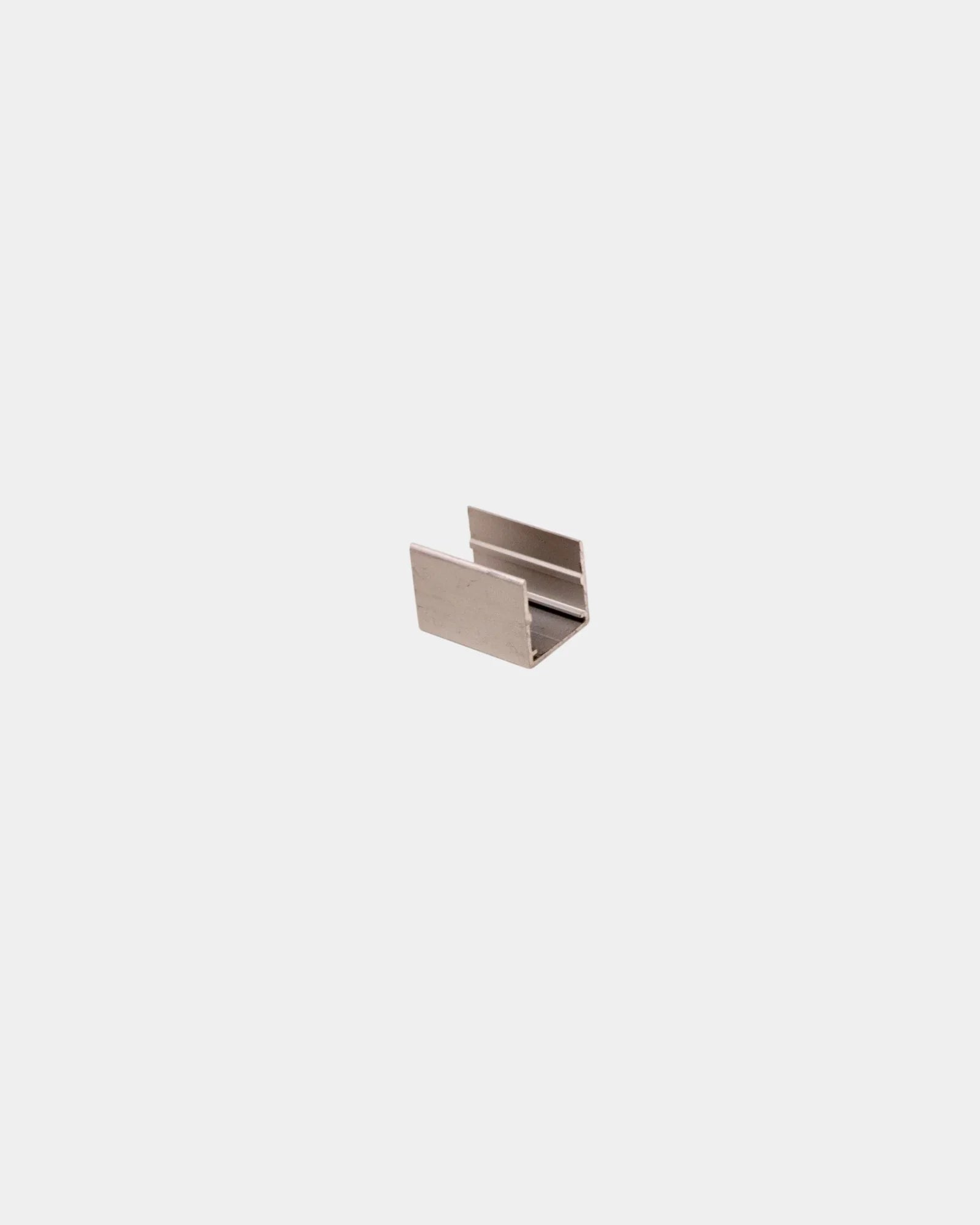

    Mini Neoflex Top Bend Mounting Clips Mini Neoflex Top Bend Mounting Clips

    Mini Neoflex Top Bend Mounting Clips

    Regular price $0.50
    Available in 1 title
